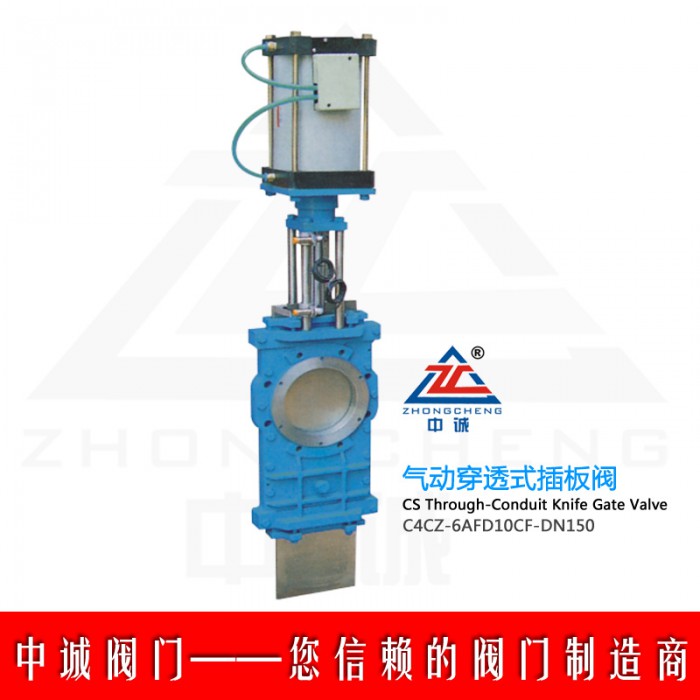

SCZ穿透式插板阀产品概述
插板阀显著特点：阀腔不积渣，特别适合于浆体输送及粉体物粒的输送。
设计制造 Design and manufacture: JB/T8691-1998
结构长度 structural length: GB/T15188.2-94
法兰连接 Flange connection: GB/T9113.1-2000 JB/T79-94
试验与验收 testing and acceptance: GB/T13927-92
SCZ穿透式插板阀主要零部件材质 Key parts material
| 阀体、上盖Valve body, upper cap | 碳钢、不锈钢Carbon steel, stainless steel |
| 阀板Valve plate | 不锈钢stainless steel |
| 阀杆Stem | 不锈钢stainless steel |
| 密封圈Seal ring | 四氟、橡胶PTFE,Rubber |
SCZ穿透式插板阀主要性能规范 Key performance indicators
| 公称压力Nominal pressure | PN |
| 壳体试验Casing test | 1.5XPN |
| 密封试验Leak test | 1.1XPN |
| 工作温度Operating temperature | 橡胶≤80℃ 四氟密封≤180℃ Rubber ≤80℃, PTFE≤180℃ |
| 适用介质Working medium | 干灰、纸浆、糖浆、污水、煤气粉末颗粒物、渣水混合物等Dry dust, paper pulp, syrup, sewage, gas, powder, particle, slag-water mix, etc. |
