简单介绍

+GF+SIGNET金属流量传感器P525系列 525 P525-2 P525-1 P525-1S P525-2S P525-3的特点与性能: ·不需要电源 ·输出信号为正弦波频率信号 ·线性度：±1%满量程 ·有效测量的流速范围：0.5~6m/s ·适用的管径尺寸范围：0.5~12 in (DN15~DN300) +GF+ SIGNET 525 高温 高压流量计

+GF+SIGNET金属流量传感器P525系列 525

   的详细介绍

+GF+SIGNET金属流量传感器P525系列
P525金属流量传感器 选型

+GF+SIGNET P525金属流量传感器
品牌：SIGNET Flow流量检测系统


+GF+ SIGNET 525 金属转轮流量计 P525流量传感器 P525-2流量探头

 +GF+SIGNET金属流量传感器P525系列 525

特性

•     最大耐压103bar

•     最高耐温149°C

•     适用管径：    DN15~300(1/2~12”)

•     安装简便

•     自供电/无需外部电源

•     316(1.4401)不锈钢壳体

•     碳化钨或不锈钢轮轴

•     标配电缆长度为7.6m

•     FM认证

•     流速范围：0.5~6m/s

应用

• 锅炉补给水监测

• HVAC暖通空调系统

• 化学品输送

• 热交换器

• 反渗透

• 冷却系统

• 不适用于气体测量

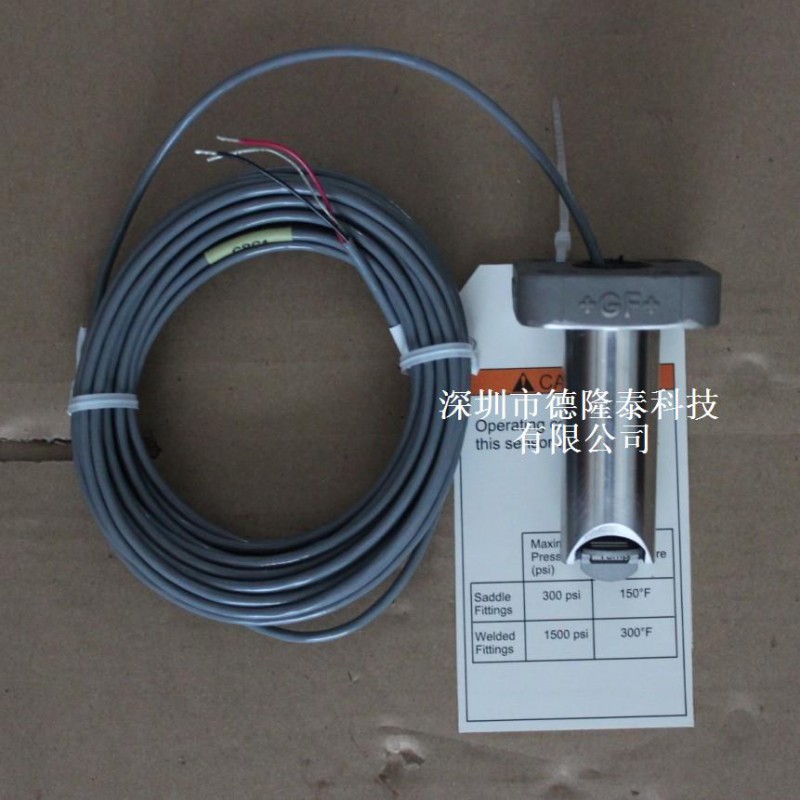

525 Metalex Flow Sensor

The Signet 525 Metalex Paddlewheel Flow Sensor combines stainless steel construction with insertion paddlewheel technology. The result is a highly reliable sensor resistant to extreme pressures and temperatures. The Tungsten Carbide shaft with Rulon B® (Fluoroloy B/PTFE) bearing provides excellent wear resistance for for extended service.

A comprehensive fitting program allows installation in steel lines with the mini-block for small diameters, and either the mini-tap or saddle for pipes up to DN300 (12 in.). The self-generating signal output allows use with battery operated flow monitor (8150).

Online Catalog

Fields of Application:

• Boiler Feedwater monitoring
• HVAC systems
• Chemical transport
• Heat exchangers
• Reverse Osmosis
• Boiler Condensate

Advantages:

• Withstands high pressures and temperatures
• ½ to 12 in. pipe range
• Simple Installation
• Tungsten Carbide or Stainless Steel rotorshaft

Standards:

• RoHS compliant
• FM approved
